The Evertz 3405 series SFPs are used in the 3405 and 3505 series of mounting frames, and 7708SFP series of card-based SFP carriers. Depending on the model, these SFPs support 3G/HD/SD/ASI distribution and/or changeover functions.
For appropriate mounting frames, please also see the 3405FR and 3505FR series frames, which are available in standalone and rackmount solutions to accommodate two to 64 SFP modules.
Coaxial Distribution SFPs
3405DA5-HDBNC
Coaxial reclocked distribution amplifier for 3G, HD, SD and ASI signals. DIN 1.0/2.3 inputs and one output. Two BNC outputs when installed in a BNC frame, four DIN 1.0/2.3 outputs when installed in a DIN frame.
Coaxial Changeover SFPs

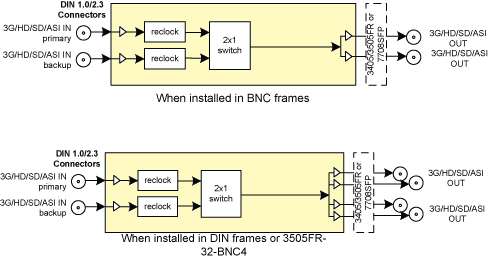

3405R2x1-DA4R-HDBNC
Coaxial reclocked 2x1 autochangeover switch for 3G, HD, SD and ASI signals. Accepts a primary and a backup input, and automatically switches to backup if the primary is not present or does not present a valid carrier. DIN 1.0/2.3 inputs. Two BNC outputs when installed in a BNC frame, four DIN 1.0/2.3 outputs when installed in a DIN frame.
For appropriate mounting frames, please also see the 3405FR and 3505FR series frames, which are available in standalone and rackmount solutions to accommodate two to 64 SFP modules.
Coaxial Distribution SFPs
3405DA5-HDBNC
Coaxial reclocked distribution amplifier for 3G, HD, SD and ASI signals. DIN 1.0/2.3 inputs and one output. Two BNC outputs when installed in a BNC frame, four DIN 1.0/2.3 outputs when installed in a DIN frame.
Coaxial Changeover SFPs
3405R2x1-DA4R-HDBNC
Coaxial reclocked 2x1 autochangeover switch for 3G, HD, SD and ASI signals. Accepts a primary and a backup input, and automatically switches to backup if the primary is not present or does not present a valid carrier. DIN 1.0/2.3 inputs. Two BNC outputs when installed in a BNC frame, four DIN 1.0/2.3 outputs when installed in a DIN frame.
