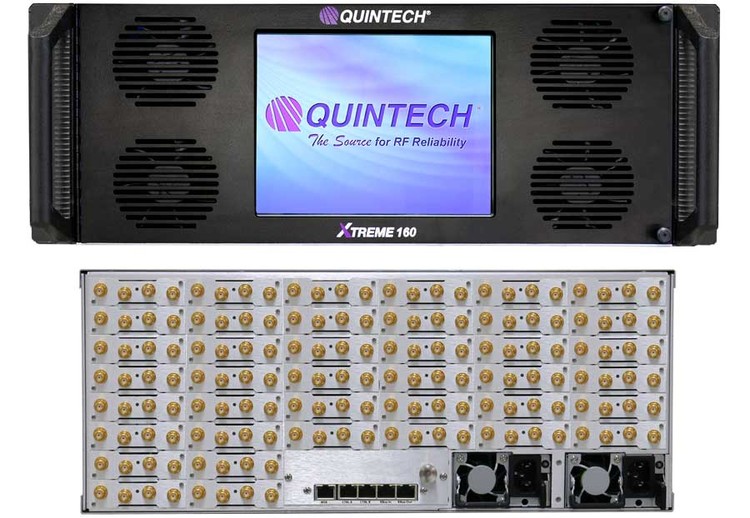

160 Port Fan-In L-Band Matrix Switch
The XTREME 160-C next generation L-band matrix switch features up to 160 ports in a compact 4 RU chassis. The XTREME 160-C is a full fan-in (combining), non-blocking switch where one or multiple inputs can be routed to an output. The XTREME 160-C features an industry exclusive flexible matrix architecture (patented) that supports both symmetric and asymmetric configurations of 160 combined inputs and outputs in a single chassis. Asymmetric configurations such as 128x32 can be implemented as well as the standard 64x64 configuration. The XTREME 160-C is designed for maximum reliability with redundant power supplies and control cards.
Features & Benefits
160 Port Fan-In L-Band Matrix Switch
The XTREME 160-C next generation L-band matrix switch features up to 160 ports in a compact 4 RU chassis. The XTREME 160-C is a full fan-in (combining), non-blocking switch where one or multiple inputs can be routed to an output. The XTREME 160-C features an industry exclusive flexible matrix architecture (patented) that supports both symmetric and asymmetric configurations of 160 combined inputs and outputs in a single chassis. Asymmetric configurations such as 128x32 can be implemented as well as the standard 64x64 configuration. The XTREME 160-C is designed for maximum reliability with redundant power supplies and control cards.
Features & Benefits
